Cossie water fittings/lines

2010/08/04 23:50:05

joeyjonsey

so if your not running an alloy radiator and i wanted to run dash 6 braided lines, i think weld on dash fittings only come in stainless and alloy ? so can stainless be welded/brazed to a radiator (i think the tanks are copper or brass ) ?

2010/09/04 07:43:19

Phil

You can buy steel -6 weld ons that can be soldiered or braised on

2010/09/04 10:20:15

joeyjonsey

thanks phil

ok i'm thinking on my pinto turbo that going from the drain plug or inlet manifold to the turbo then from the turbo to the top rad tank

2010/09/04 15:06:03

tybrown

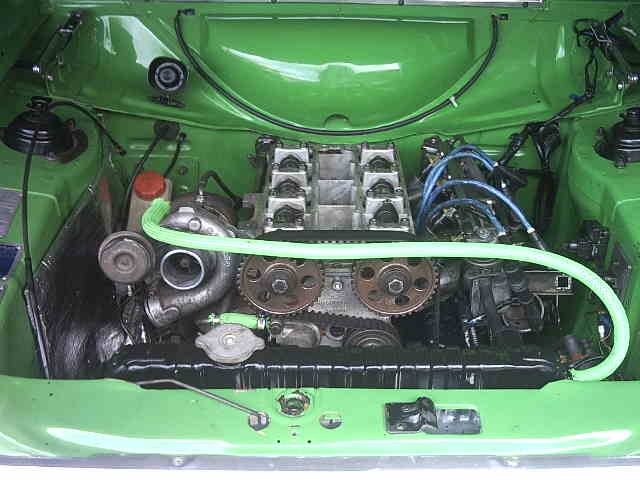

this is what i did when i installed a cossie in my old mk1

i took the radiator down to local radiator mob and had a connection braized welded to top tank. (cheap and easy!)

2010/09/04 16:23:55

ash

Where's that bottom line going Ty? To the side of the thermostat housing?

Ash

2010/10/04 17:15:50

tybrown

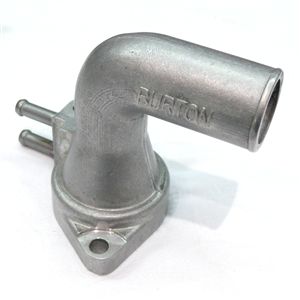

2WD Cosworth Thermostat housing looks like this.. this would bolt onto the pinto head... BUT the hose would be facing the wrong direction?

two outlet's on the housing. 1 is turbo water feed the other is to bleed the coolant system.

2010/10/04 19:02:17

Mark

quote:
Originally posted by tybrown

2WD Cosworth Thermostat housing looks like this.. this would bolt onto the pinto head... BUT the hose would be facing the wrong direction?

two outlet's on the housing. 1 is turbo water feed the other is to bleed the coolant system.

...If you have a top tank radiator like in a Mk1/k2 Escort then just drill out one of the lines and plug, neat[;^)]...I used a 1/8 BSP plug...
