V6 Bonnet Blackout diagram

Author
Post
Essentials Only Full Version
muzwaldo
Enthusiast
  • Total Posts : 88
  • Scores: 0
  • Reward points: 5363
  • Joined: 2011/08/01 11:02:49
  • Location: Dublin Ireland
  • Status: offline
2010/02/15 16:28:33 (permalink)
0

V6 Bonnet Blackout diagram

Hi all,

Is there a diagram available that shows the measurements of the bonnet blackouts for the V6 and also the position of the "push and twist" bonnet locks? I'm sure I've seen a diagram posted somewhere but I've done a search and can't seem to find it.

Still looking for some bonnet lock brackets too [x2x]

Cheers,
Steve
#1


6 Replies Related Threads
    FoxyCapri
    Master
    • Total Posts : 356
    • Scores: 33
    • Reward points: 5474
    • Joined: 2011/08/01 11:02:49
    • Location: Buderim, Queensland. Australia
    • Status: offline
    RE: V6 Bonnet Blackout diagram 2010/02/15 22:06:28 (permalink)
    0
    G'day Steve, I'm sure that JR has the details on this. Now where is he when you need him? Are you there JR? Tel
    #2
    gtv6capri
    Deity
    • Total Posts : 1461
    • Scores: 53
    • Reward points: 5548
    • Joined: 2011/08/01 11:02:49
    • Location: Melbourne Vic Australia
    • Status: offline
    RE: V6 Bonnet Blackout diagram 2010/02/15 22:36:08 (permalink)
    0
    Yep I have the diagram,only issue is it is stored on my old hard drive I have just done one from it though and can copy the spec, there are a couple of tricks with the patch so don't guess it
    #3

    cosworthfreak
    Moderator
    • Total Posts : 684
    • Scores: 53
    • Reward points: 5517
    • Joined: 2011/08/01 11:02:49
    • Location: Location
    • Status: offline
    RE: V6 Bonnet Blackout diagram 2010/02/15 23:06:35 (permalink)
    0

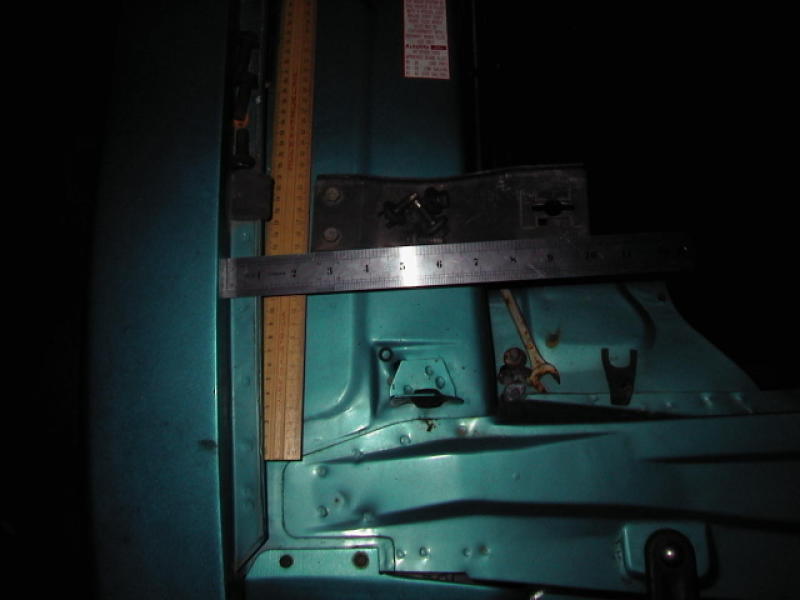

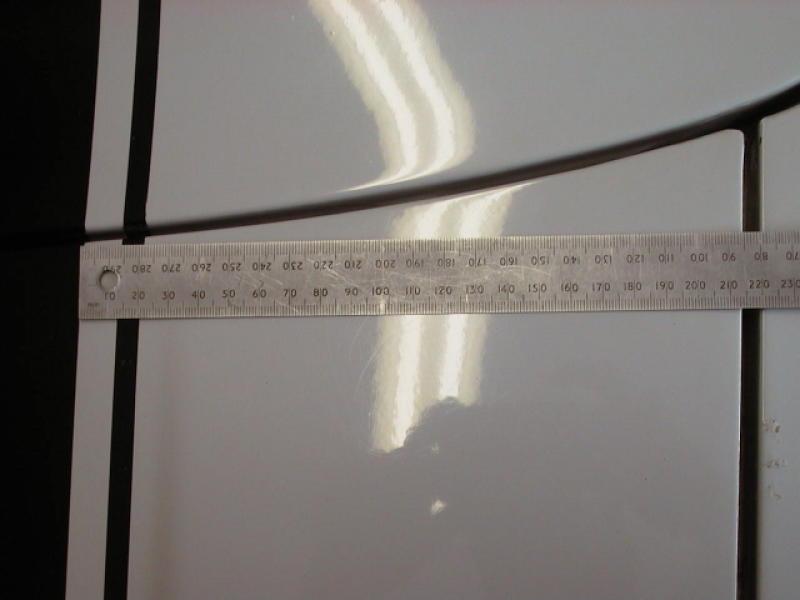

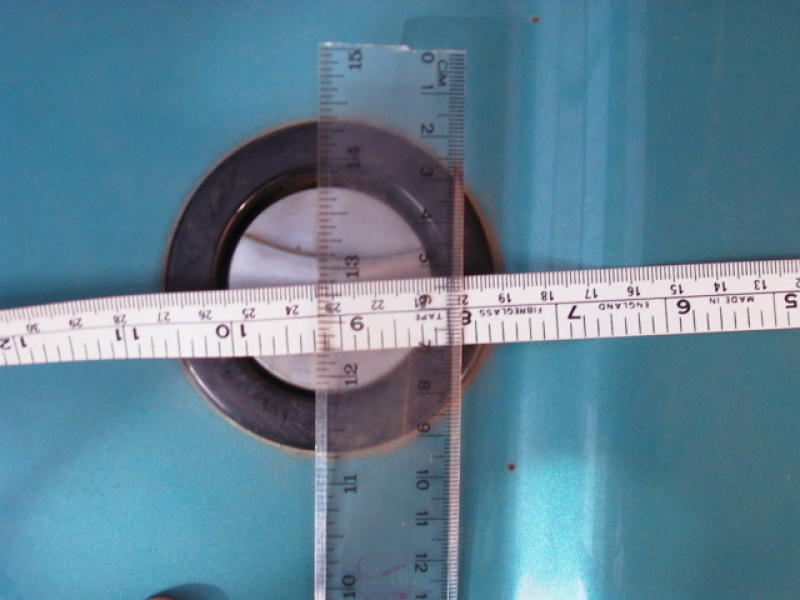

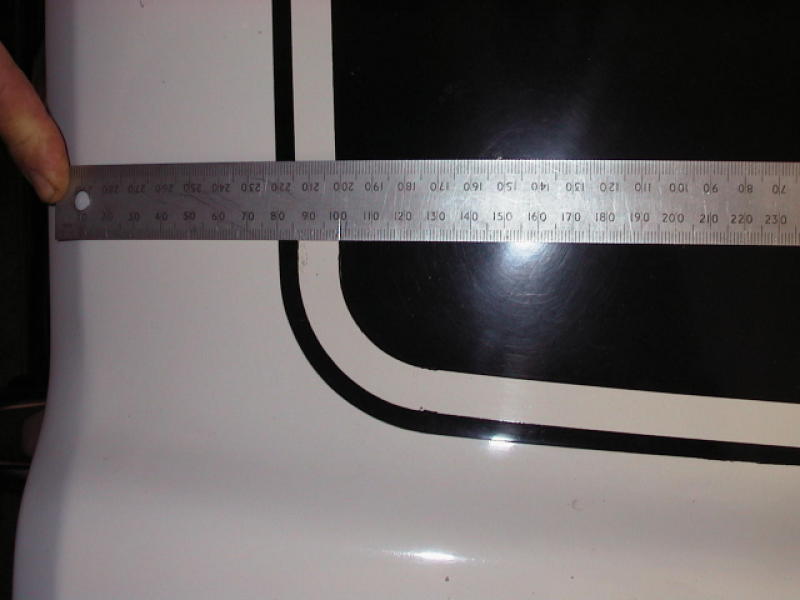

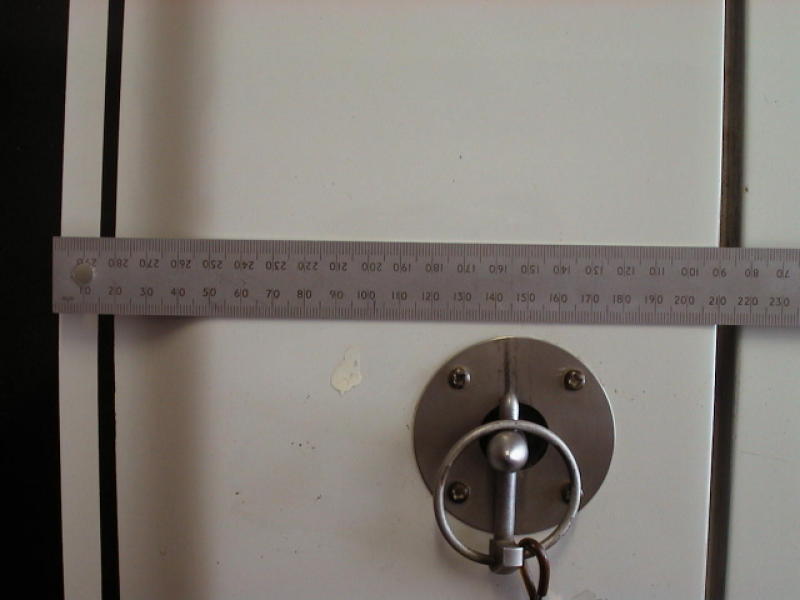

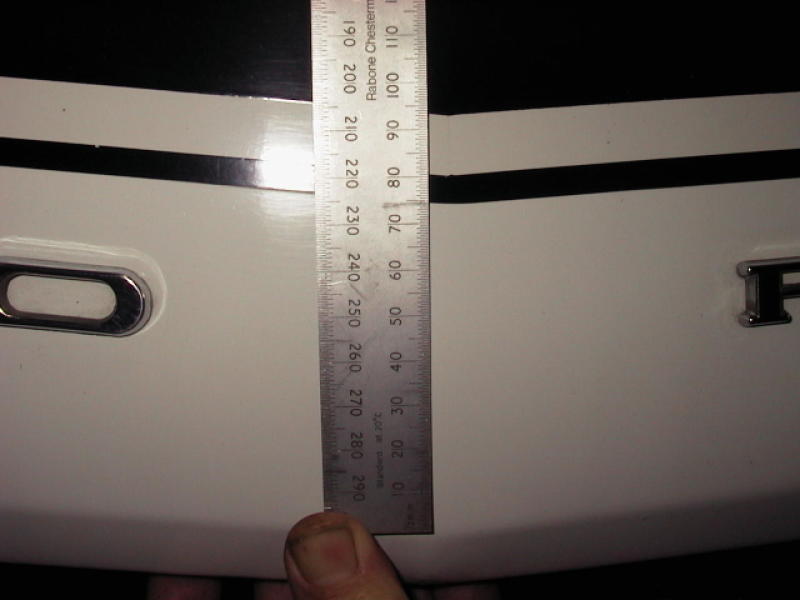

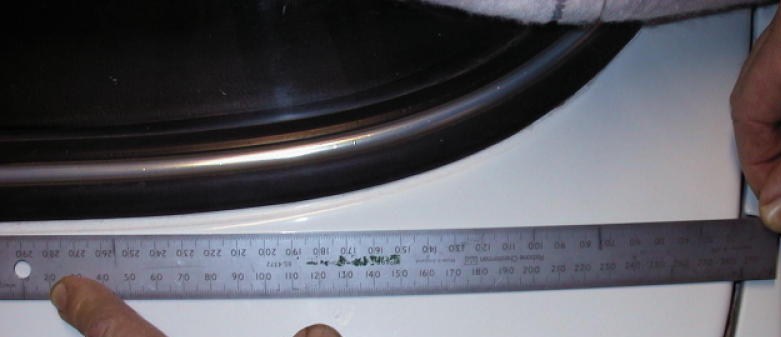

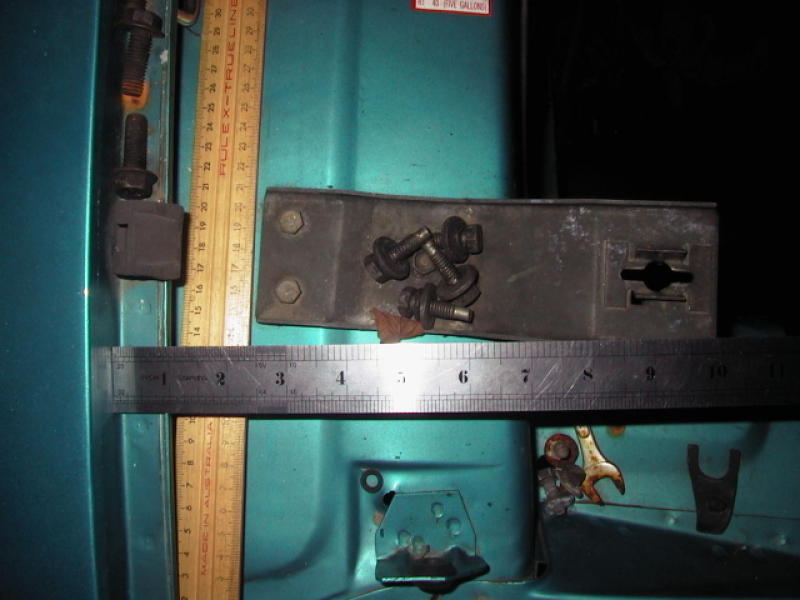

    I have saved some pictures (from the Yahoo Capri group I think) that John took showing the position of these things, in case I needed to refer to them. I'll post them below if it helps. If there is a template around that can be printed out on a large peice of paper that would be excellent.

    Jamie

























    #4
    GTV6
    Master
    • Total Posts : 736
    • Scores: 34
    • Reward points: 5871
    • Joined: 2011/08/01 11:02:49
    • Location: Perth WA Australia
    • Status: offline
    RE: V6 Bonnet Blackout diagram 2010/02/16 04:25:12 (permalink)
    0
    Many years ago I painted over mine but am going to put them back on for the next re-spray, soon if all goes well.

    Does anyone have any tips on how to get a good paint finish under the heater box grill?
    #5
    muzwaldo
    Enthusiast
    • Total Posts : 88
    • Scores: 0
    • Reward points: 5363
    • Joined: 2011/08/01 11:02:49
    • Location: Dublin Ireland
    • Status: offline
    RE: V6 Bonnet Blackout diagram 2010/02/16 09:56:53 (permalink)
    0
    Thanks Guys,

    JR,
    Are you going to the club meeting tonight? Maybe I can get a copy of the file then.

    Jamie,
    Thanks heaps for the pics, they are most helpful and really appreciated.

    Cheers,

    Steve
    #6

    cosworthfreak
    Moderator
    • Total Posts : 684
    • Scores: 53
    • Reward points: 5517
    • Joined: 2011/08/01 11:02:49
    • Location: Location
    • Status: offline
    RE: V6 Bonnet Blackout diagram 2010/02/16 19:58:39 (permalink)
    0
    quote:
    Originally posted by muzwaldo


    Jamie,
    Thanks heaps for the pics, they are most helpful and really appreciated.


    No problems, but I can't take any credit for taking them in the first place.


    Jamie
